Current Divider Example # 1: Two resistors with 500 ohm and 800 ohm

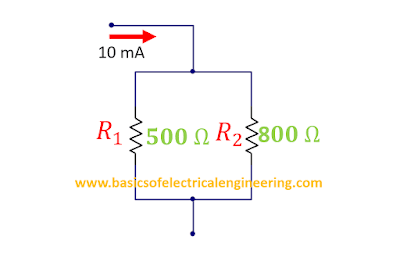

Statement: Two resistors of values 500 ohms and 800 ohms connect in parallel, Using the current divider formula find the current flowing through both of them.
Solution:

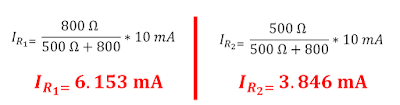

Using the current divider rule, apply for R_1 and R_2 as follows:

1 comment:

  1. If you use the same formula to solve for two resistors, as you use for three or more, you will only need the one formula for any number of branches!
