Wye to Delta Conversion

In this post, you'll learn about Wye to Delta conversion formulas and examples.

We previously studied about the Delta to Wye conversion this is a linked article and you might want to check it too.

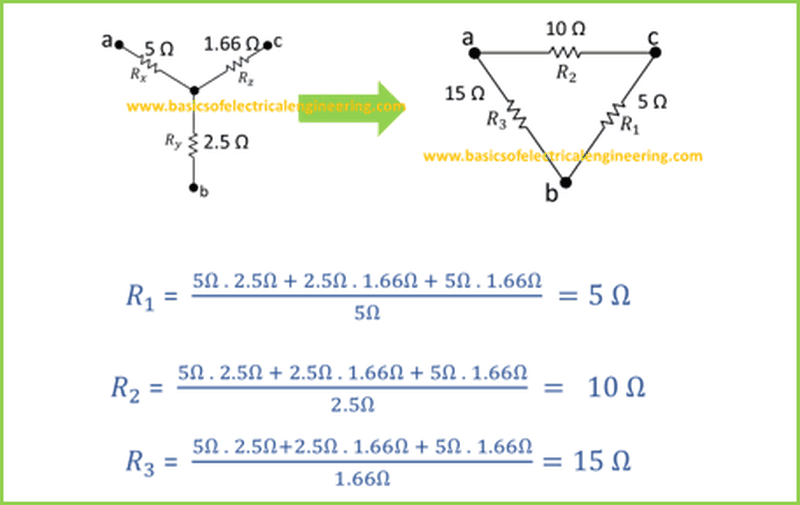

wye-to-delta-construction
And the formula for performing the conversion is:
Let's solve an example for it:
wye to delta conversion example
Here are five solved conversions are wye and delta. You can solve them and match your answers for practice. (The answers are approximate and you might find a difference between your answers.

Sr Delta (R1, R2, R3) Wye (Rx, Ry, Rz)
1. 6, 14, 16 6.22, 2.66, 2.33
2. 10, 50, 100 31.25, 6.25, 3.125
3. 18, 36, 42 15.75, 7.875, 6.75
4. 3, 6, 9 3, 1.5, 1
5. 166, 255, 331 112.240, 73.066, 56.289
