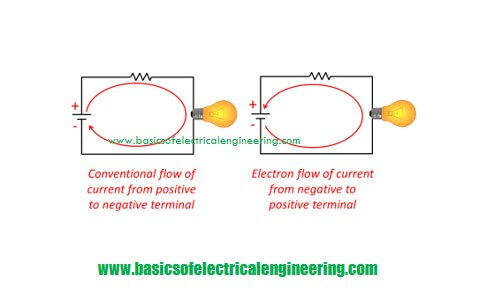

The conventional current flow direction assumes that current flows from the positive terminal of the battery to the negative. Whereas the electron current flow direction represents actual flow of electrons which is from negative terminal to the positive terminal of the battery. The figure below clearly illustrates this.
